Picade Max Encoder (Volume Control)

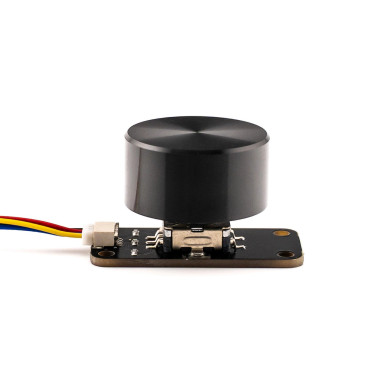

Pimoroni PIM770 - Add a hardware volume control dial to Picade Max USB Audio. Picade Max Encoder is a small board with a digital rotary encoder conveniently pre-attached. Connect it up to the 'Encoder' port on Picade Max USB Audio and adjust the volume of your homebrew arcade machine (or alternate cool DIY build), with no soldering required ✨ The encoder is also a button, so you can click it to mute/unmute. It comes with the same snazzy black aluminium dial that we use in Picade Max kit, and a 200mm cable for plugging it in. Kit includes Picade Max Encoder board, with EC11 digital rotary encoder Black aluminium dial JST-SH to JST-SH cable (200mm) Picade Max USB Audio board is sold separately. Notes This is not an I2C device! We've used a 4 pin JST-SH connector for convenience but it's not compatible with Qw/ST / Qwiic / STEMMA QT. Dimensions:  Board measures 18 x 38 mm (L x W) Total assembled height: 22mm (approx) The mounting holes are M2.5, inset 3mm from each edge (AKA 32x12 hole pattern).
